Turning Area + Fur Fill Pattern Stitches

EO Turning Area Fur Fill Pattern 5

This fill style places one or several areas of pattern stitches with a random transformation effect on an area defined by a turning area object type. Stitches are oriented according to the defined direction lines.

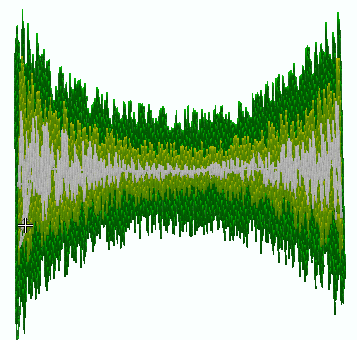

Sample Turning Area Fur Pattern 1 J

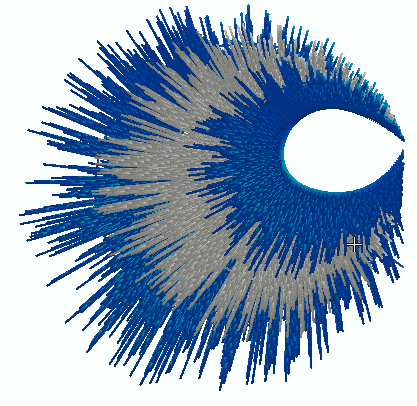

Sample Turning Area Fur Pattern 2 J

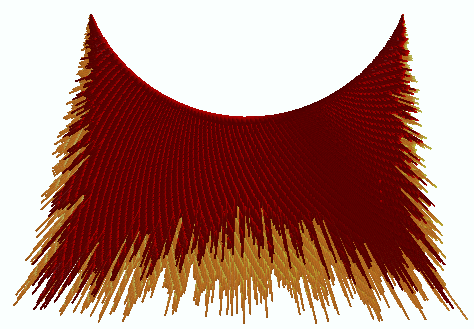

Sample Turning Area Fur Pattern 3 J

How to create an object of this type?

Select the tool Create a Turning Area with Fur-Fill Pattern Stitches through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the tooltab EMBROIDERY, click on the arrow below the "Turning Area" button and select the corresponding tool.

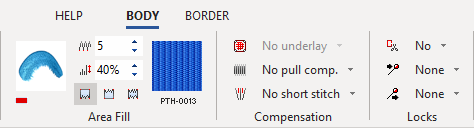

A context ToolsTab containing the most frequently used properties of this fill style will open.


EO-Turning_Area_Fur_Fill_Pattern_3



Set the fill properties from the ToolsTab (above) or the Object Inspector (below).

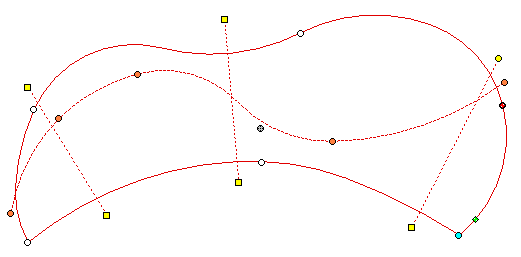

Digitize the object (through any digitizing method) by inserting the required elements of this object type.

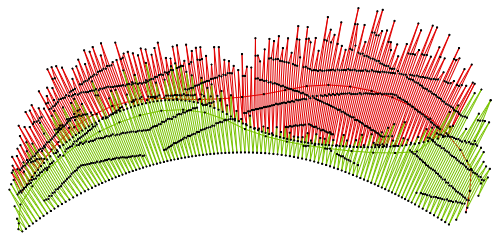

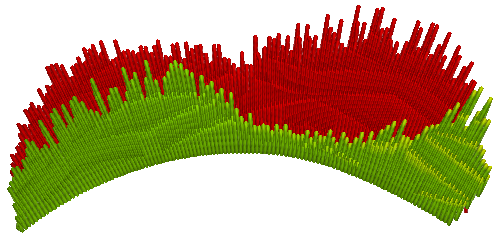

Confirm and GENERATE stitches.

If editing is required, just select the Select Object tool on the Main Toolbar.

turn-area-fur-pt-1
turn-area-fur-pt-2
turn-area-fur-pt-3



icon-info-1

About Fill Style Properties

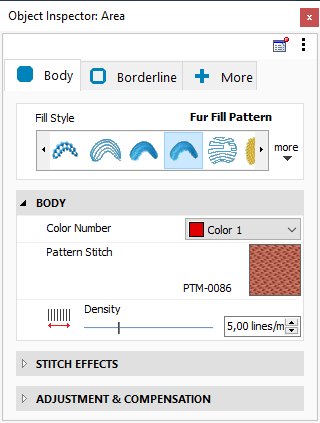

You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

The most commonly used properties are also available on the corresponding tooltab.

The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Fill Properties



hmtoggle_arrow1Stitch Effects Properties



hmtoggle_arrow1Adjustment Properties

Read also

Concepts about the TURNING AREA object.

Concepts about Classic Digitizing.
