Turning Area + Programmable Stitches

EO Turning Area Elastic Programmable 5

This fill style places programmable stitches (small motifs) on a close area defined by a turning area object type. Programmable stitches are oriented according to the defined direction lines and transformed according to the area width.

SAMPLE~1
Sample Turning Area Elastic Programmable 2
Sample Turning Area Elastic Programmable 3

How to create an object of this type?

Select the tool Create a Turning Area with Programmable Stitches through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the tooltab EMBROIDERY, click on the arrow below the "Turning Area" button and select the corresponding tool.

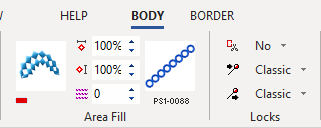

A context ToolsTab containing the most frequently used properties of this fill style will open.


EO_Turning_Area_Elastic_Programmable_3



Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



Digitize the object (through any digitizing method) by inserting the required elements of this object type.

EO Turning Area Elastic Programmable 1



Confirm and GENERATE stitches.



If editing is required, just select the Select Object tool on the Main Toolbar.

EO Turning Area Elastic Programmable 2

icon-info-1

About Fill Style Properties

You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

The most commonly used properties are also available on the corresponding tooltab.

The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Fill Properties



hmtoggle_arrow1Adjustment Properties

Read also

Concepts about the TURNING AREA object.

Concepts about Classic Digitizing.
