Path + Programmable Stitches

<< Click to Display Table of Contents >>

Navigation:  Embroidery Digitizing > Objects TYPES & Fill STYLES > Object PATH >

Path + Programmable Stitches

EO Programmable Path 5

This fill style places decorative stitches (pre-designed motifs) on a path defined by straight or curve segments. Path can be open objects or closed objects.
Sample Path Programmable Stitch 1
Sample Path Programmable Stitch 2
Sample Path Programmable Stitch 3

How to create an object of this type?

➢Select the tool Create a Path with Programmable Stitches through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Embroidery ToolsTab, click on the arrow below the "Path" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

EO_Programmable_Path_3



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
EO Programmable Path 1



➢Confirm and GENERATE stitches.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
EO Programmable Path 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Fill Properties

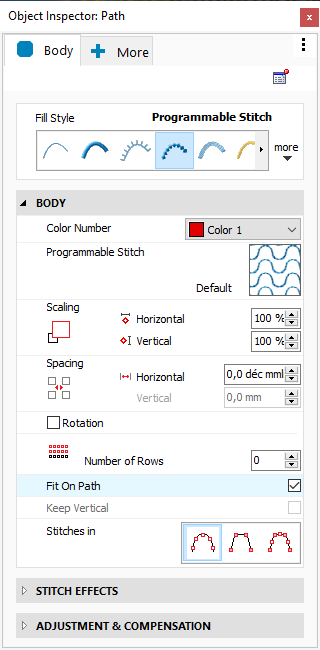

OI Path_ProgrammableStitch_Body





emb summary 20

This is the color number of the thread/color palette.

You can change the color number from the color bar, from the context tooltab or from the object inspector.

The thread color for this color number is defined (and can be redefined) on the thread/color palette.

The stitches of the selected object will be created using the selected color.

This number is also the needle number of the embroidery machine (for multi-needle machines), unless the needle sequence is redefined.

Change Color Number on a Path with Running Stitches


emb summary 1


emb summary 2

Change Color Number on a Path with Zig-Zag Stitches


emb summary 29


emb summary 30

Change Color Number on a Path with E Stitches


emb summary 104


emb summary 105



It specifies the color number of the thread palette corresponding to the main color of the object.



emb summary 120

This is the programmable stitch component used to fill the path.

You can open the programmable stitches library by clicking on the icon and select the one you want.





Programmable stitches sample 1



Programmable stitches sample 1

emb summary 121 J
emb summary 122 J



Programmable stitches sample 3



Programmable stitches sample 4

emb summary 123 J
emb summary 124 J



It specifies the programmable stitch component to use.



emb summary 125

Re-size the component horizontally and/or vertically.





Programmable Stitch, scale: 100%



Programmable Stitch, scale: 50%

emb summary 126
emb summary 127





Programmable Stitch, scale: 50%



Programmable Stitch, scale: 100%

emb summary 288 J
emb summary 289 J



Specify the size of the programmable stitch.



emb summary 128

This property defines the separation between each component on the path.





Programmable Stitches on Path:

no spacing



Programmable Stitches on Path:

spacing: 1.5mm

emb summary 127
emb summary 129



Specify the separation between programmable stitches.



emb summary 54

Rotates the component according to the specified angle.





Programmable Stitches, Angle: 0



Programmable Stitches, Angle: 45


emb summary 122 J


emb summary 130 J



Rotates the programmable stitch from its natural position.



emb summary 131

Number of rows of programmable stitches on the path.





Rows: 1



Rows: 3


emb summary 132


emb summary 133



Number of rows of programmable stitches.



emb summary 136

Splice each programmable stitch with its neighbor to present a continuity between consecutive programmable stitches

Programmable stitches will be deformed as necessary.





Disable Fit on Path



Enable Fit on Path


emb summary 134


emb summary 135



Deform programmable stitches to splice each other.



emb summary 229

Keep the programmable stitches in its original position, not considering the path shape or direction.





Disable Keep vertical



Enable Keep vertical


emb summary 137


emb summary 138



Keep the programmable stitch in its original (angle) position.



emb summary 23

This property controls how stitches are placed along the path.

Three options are available:

•Path: Stitches are generated along the path, according to the stitch length.

•Reference: Stitches are generated on the nodes only.

•Path and Reference: Stitches are generated along the path and in the traced nodes.

On Paths with Running Stitches



Path



Reference



Both


emb summary 7


emb summary 8


emb summary 9

On Paths with Programmable Stitches



Path



Reference



Both


emb summary 139


emb summary 140


emb summary 141



Specify where the stitches are placed along the path object.



hmtoggle_arrow1Stitch Effects Properties



OI Path_ProgrammableStitch_StitchEffects





Change the border shape of an object according to a pre-defined geometric shape: sin wave, square wave, ramp, triangle, curve, globe, etc.

OI Effects_EdgeModulation

Properties:

•Side: Specify the object side where to apply the effect.

•Value: Adjust the width percentage affected by the effect.



Sample of Edge Modulation



Edge Modulation: No



Edge Modulation: Square Wave


emb summary 56


emb summary 57

Edge Modulation Selector & Editor

emb summary 55

Properties:

•Side: Select the side of the Path to apply the effect (Side A, Side B, Both Sides).

•Direction: Define the direction of the effect (Normal or Invert) from the first node to the last one. The result of this property will only be visible in those effects that do not have a horizontal symmetry such as ramps.

•Symmetry: Specify how the effect is applied to both sides of the Path. There are two options: Mirror and Parallel.

oMirror: Produce a symmetrical modulation.

oParallel: Produce an identical modulation on both sides.

•Amplitude: Specify the modulation size (measured in percentage) of the column width.

•Count or Length: Count repeats the effect pattern a specified number of times. Length keeps the original size of the effect pattern and repeat it as many times as possible throughout the path length.



Change the width of the programmable stitches along a path according to a pre-defined geometric shape.



Add a shape effect to the ends of a Path and customize it.

OI Effects_EndShapeFirst

OI Effects_EndShapeLast

Properties:

•Name: Shape type used in the first and the last end of a Path. Choose any of the options in the drop-down menu.

•Length: Defines the length of the selected shape. The higher the value, the longer the shape on the path.

•Amplitude: Percentage of the column width. A 100% amplitude corresponds to an effect that duplicates the column width.





First End: Point.

Length: 2mm. Amplitude: 100%



First End: Point

Length: 4mm. Amplitude: 100%


emb summary 60


emb summary 60a J



Last End: Diamond

Length: 6mm. Amplitude: 100%



Last End: Diamond

Length: 4mm. Amplitude: 150%


emb summary 62


emb summary 62a J



First End: Round Wide

Last End: Arrow

Length: 4mm. Amplitude: 100% (both ends)



First End: Round Wide

Last End: Arrow

Length: 8mm. Amplitude: 100% (both ends)


emb summary 61


emb summary 61a J

Add a shape effect to the ends of a Path.



Round a closed angle to avoid a spiky shape

OI Effects_RoundSharpAngles

The lower the percentage is, the higher the sharped angle detection gets.





Disable Round Sharp Angles



Enable Round Sharp Angles



emb summary 63



emb summary 64



It rounds a corner with a closed angle to avoid a spiky shape.



hmtoggle_arrow1Adjustment Properties



OI Path_ProgrammableStitch_Adjustment





Filter the small stitches of the object (smaller than the indicated value).

OI Adjustment_DeleteSmallStitches

Options are:

oAutomatic: The filter is enabled and the minimum stitch length used is the general value set in Options And Preferences.

oUser defined: The system will delete stitches shorter than the indicated value.

Sample of Delete Small Stitches: Path with Running Stitches



Before applying the filter



After applying the filter



emb summary 18



emb summary 19

Sample of Delete Small Stitches: Column with Zig-Zag Stitches



Before applying the filter



After applying the filter



emb summary 82



emb summary 83



It deletes the stitches that are smaller than a predefined value (unnecessary & inconvenient).



Insert tack-down stitches to prevent unfixed stitches when connecting far parts of the object.

OI Adjustment_LockStitchesInternalConnections

Types of Lock Stitches are:

oClassic

oStar

oTwist

oCross

oArrow

Properties:

•Length: Specify the lock stitch length for Classic type.

•Scale: change the size of the lock stitch.

•Repetition: Define the number of times to repeat the lock stitch.



It adds stitches to fix the thread, recommendable on thread trims and color changes.

Read also

•Concepts about the PATH object.

•Concepts about Classic Digitizing.
