Path + Multi-Sequin Fill

EO Multi Sequin 5

This fill style places sequins of different types on a path defined by straight or curve segments. Paths can be open objects or closed objects. This fill style is intended only for embroidery machines including multi-sequin devices.

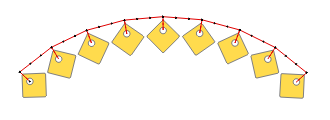

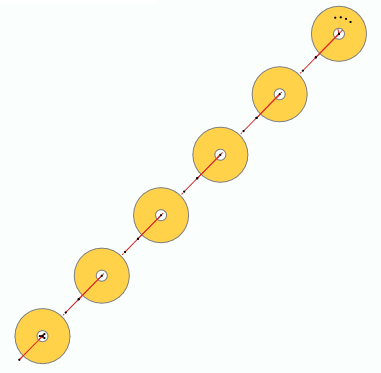

Sample Path Multi Sequin Fill 1
Sample Path Multi Sequin Fill 2
Sample Path Multi Sequin Fill 3

How to create an object of this type?

Select the tool Create a Path with Multi-Sequin Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the tooltab EMBROIDERY, click on the arrow below the "Path" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.


EO_Multi_Sequin_3



Set the fill properties from the ToolsTab (above) or the Object Inspector (below).

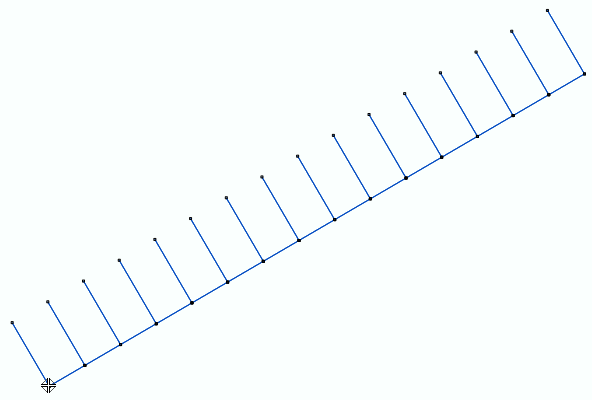

Digitize the object (through any digitizing method) by inserting the required elements of this object type.

EO Multi Sequin 1



Confirm and GENERATE stitches.



If editing is required, just select the Select Object tool on the Main Toolbar.

EO Multi Sequin 2

icon-info-1

About Fill Style Properties

You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

The most commonly used properties are also available on the corresponding tooltab.

The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Fill Properties



hmtoggle_arrow1Adjustment Properties



hmtoggle_arrow1Connections & Functions

Read also

Concepts about the PATH object.

Concepts about Classic Digitizing.
