Sphere Effect

It adds a sphere effect to a bling object.

Sphere 6



Sample video including Sphere Effect

https://www.youtube.com/watch?v=xH0gm2MYvuw



How to apply this effect on a bling object?

➢Select the bling object.

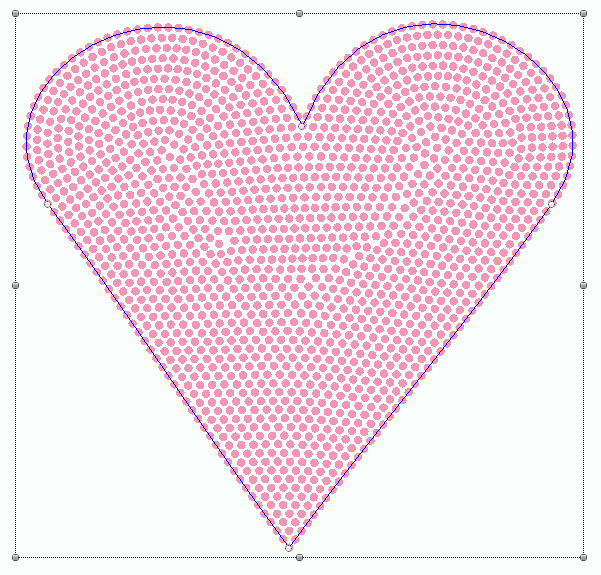

Sphere 1

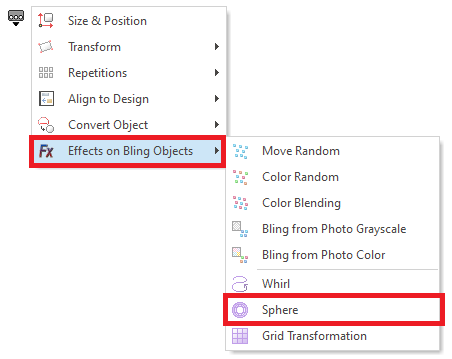

➢Open the Block Menu

➢Click on "Effects on Bling Objects"

➢Click on "Sphere"


Sphere_2

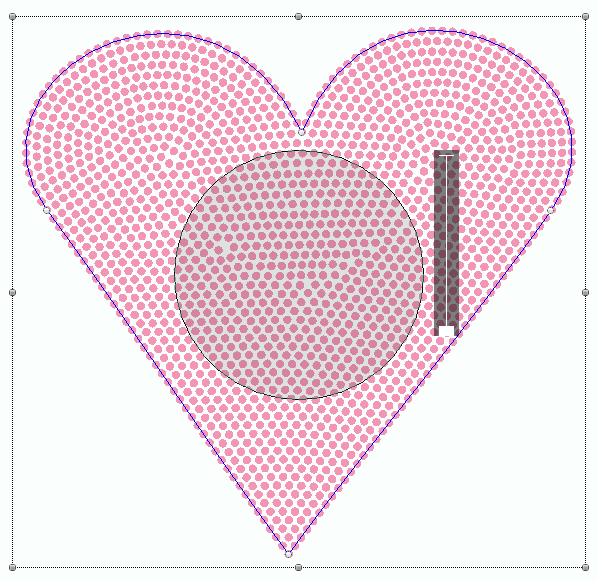

➢Place the mouse on the bling object, exactly where you want to set the center of the sphere.

➢Press and hold the mouse left button, then move the cursor (drag) to define the radius of the circular area to modify. Release the mouse left button when finished.

➢To modify the position of the circle, place the mouse cursor inside the circle and drag it to move the circle.

➢To modify the size of the circle, place the mouse cursor on the outline of the circle and drag it to change the size.

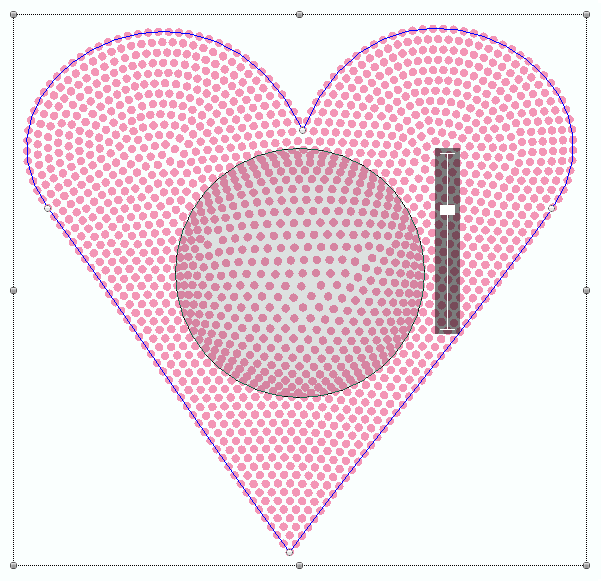

Sphere 4

The amplitude selector is located at the upper right side of the circle.

➢Drag the selector up or down to specify the amplitude of the effect. You can see the result in real time.

➢Press the Enter key or select Accept/OK from the context menu.

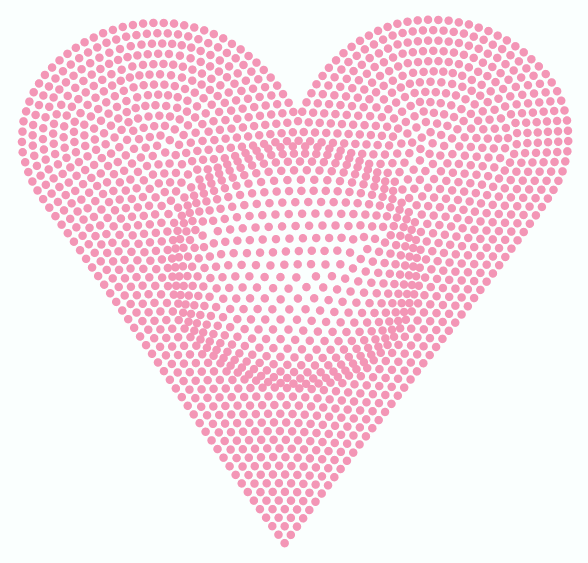

Sphere 5

This is the result.


Sphere 6



This feature is included in the Bling Effect Pack
