The Bling Beads Sequence

The Bling Beads Sequence panel shows the list of beads of the design as a table.

This tool is synchronized with the active design, that is:

•When you select a bead in the workspace, the Bling Beads Sequence panel will show and highlight the corresponding bead. When you select a bead in the Bling Beads Sequence panel, the workspace will show and highlight the corresponding bead.

•Changes made in the Bling Beads Sequence panel will be reflected in the design on the workspace. Changes of individual beads made in the workspace will be reflected in the Bling Beads Sequence panel.

You can open the Bling Beads Sequence panel by clicking on the "Bling Objects" tab on the right side of the screen.

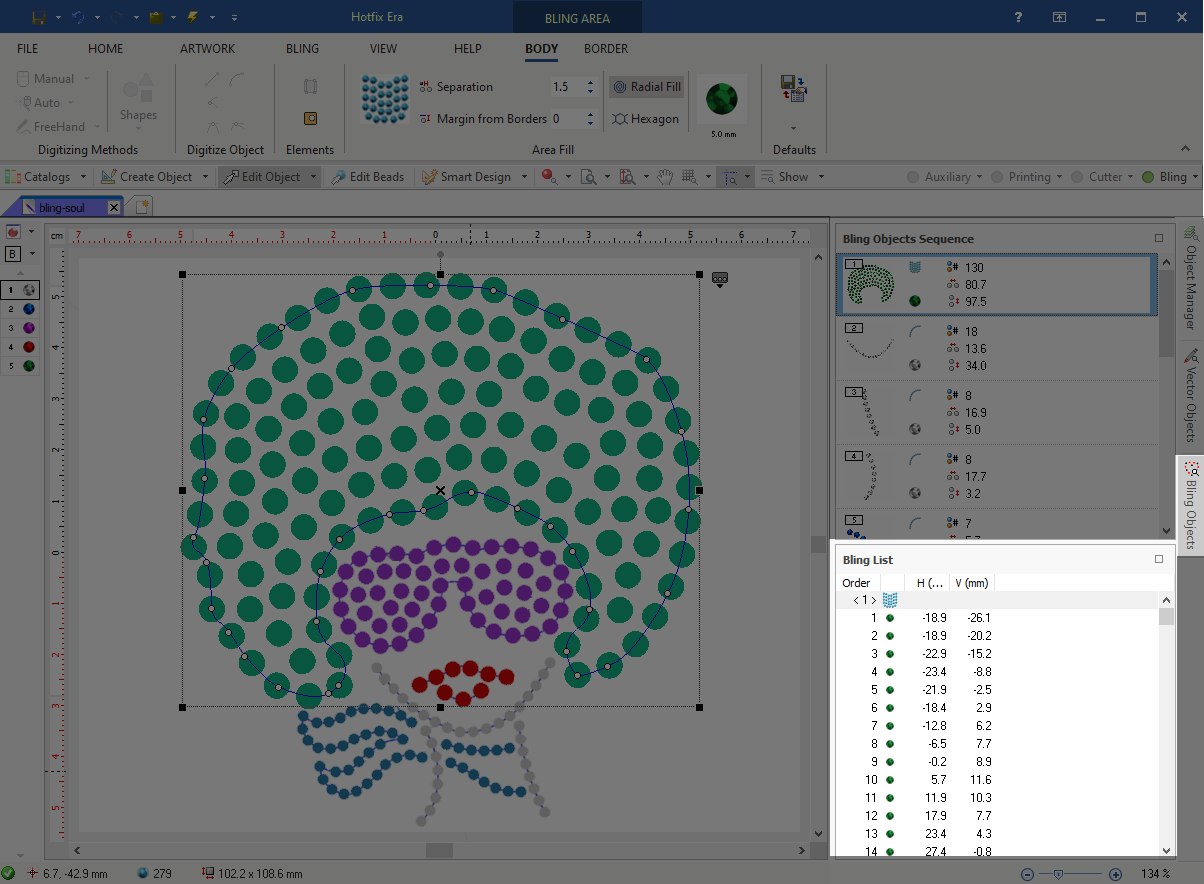

HF_Elements_0



HF Elements 1

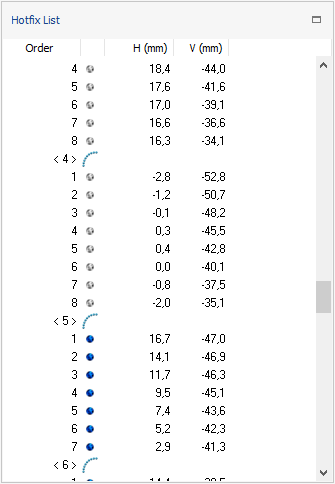

The list of bling beads shows the following information (columns):

•Index

It shows the order number of the bling object with the object type (number is within <> symbols). It also shows the bead order number within that object with the bling bead color.

•H (mm)

Shows the beads relative displacement on the horizontal axis or its absolute coordinate.

•V (mm)

Shows the beads relative displacement on the vertical axis or its absolute coordinate.

You can use the arrow keys to navigate along the bling beads list.



icon-idea-1

Togle to Stitch Editing mode

When selecting any bling bead from the list, the application will switch automatically to the bling beads (expanded) editing mode.
